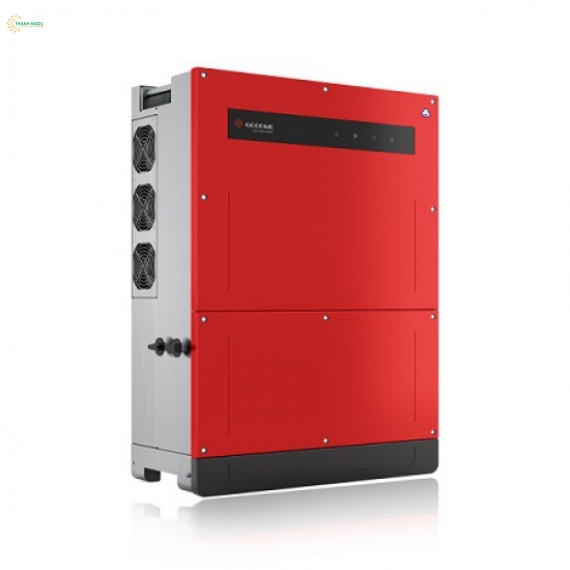

Inverter Goodwe GW30K-MT
SKU: GW30K-MT
Nhà sản xuất: Goodwe
Công suất: 30kW
Điện áp ngõ ra: 3 Pha 380V
Loại: 3 MPPT
Technical DataGW30K-MTDC
Input DataMax. PV Power (W)39000Max.
DC Input Voltage (V)1100MPPT
Range (V)200~950
Starting Voltage (V)180
Nominal DC Input Voltage (V)600
Max. Input Current (A)25/25/25
Max. Short Current (A)31.3/31.3/31.3
No. of MPP Trackers 3
No. of Input Strings per Tracker2/2/2
AC Output DataNominal Output Power (W)30000
Max. Output Power (W)33000
Max. Output Apparent Power (VA)33000
Nominal Output Voltage (V)400, 3L/N/PE or 3L/PENominal Ouput Frequency (Hz)50/60
Max. Output Current (A)48
Output Power Factor 0.8 leading to 0.8 lagging
Output THDi (@Nominal Output)<3%
EfficiencyMax. Efficiency 98.80%
European Efficiency >98.5%
Protection Anti-Islanding Protection
IntegratedInput Reverse Polarity Protection Integrated
PV String Current Monitoring Integrated
Anti-PID Function for Module OptionalInsulation monitoring Integrated
DC SPD ProtectioinOptional (Type II)
AC SPD ProtectioinOptional (Type II)
Residual Current Monitoring Unit Integrated
AC Over Current Protection Integrated
AC Short Protection Integrated
AC Over Voltage Protection Integrated
General DataAmbient Temperature Range (°C)-30~60
Relative Humidity0~100%
Operating Altitude (m)≤3000
Cooling Fan Cooling
Display LCD & LED or APP & LED
Communication RS485 or WiFi or GPRS or PLC (LCD); WiFi+RS485 or GPRS+RS485 (APP)
Weight (kg)40
Dimension (Width*Height*Depth mm) 480x590x200mm
Protection Degree IP65
Night Self Consumption (W)<1
Topology Transformerless
Certifications & StandardsGrid RegulationAS4777.2/VDE0126-1-1/VDE-AR-N 4105
Safety Regulation IEC62109-1&-2
EMC Regulation EN 61000-6-1/EN 61000-6-2/EN 61000-6-3/EN 61000-6-4
