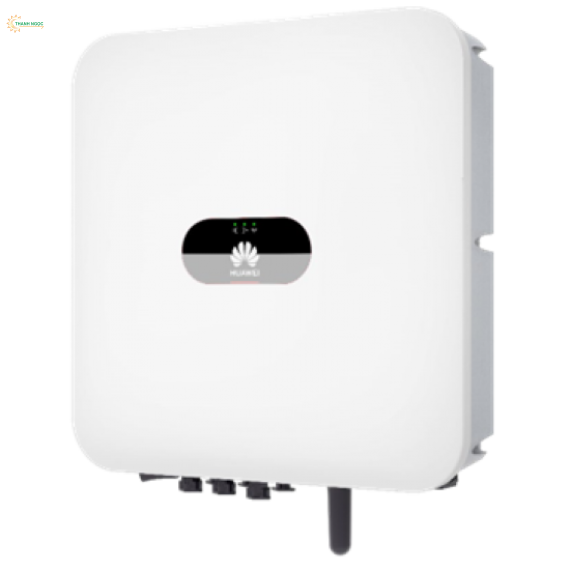

Inverter Huawei SUN2000 -20KTL-M0

Inverter Huawei SUN2000 -20KTL-M0

  • 72
  • Liên hệ

Recommended max. PV power 29,760 Wp

Max. input voltage 1,080 V

Operating voltage range 160 V ~ 950 V

Start voltage 200 V

Rated input voltage 600 V

Max. input current per MPPT 22 A

Max. short-circuit current 30 A

Number of MPP trackers 2

Max. input number per MPP tracker 2


Technical Specification

SUN2000 -20KTL-M0

Efficiency

Max. efficiency

98.65%

European weighted efficiency

98.30%

Input

Recommended max. PV power

29,760 Wp

Max. input voltage 1

1,080 V

Operating voltage range 2

160 V ~ 950 V

Start voltage

200 V

Rated input voltage

600 V

Max. input current per MPPT

22 A

Max. short-circuit current

30 A

Number of MPP trackers

2

Max. input number per MPP tracker

2

Output

Grid connection

Three phase

Rated output power

20,000 W

Max. apparent power

22,000 VA

Rated  output voltage

220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE

Rated AC grid frequency

50 Hz / 60 Hz

Max. output current

33.5 A

Adjustable power factor

0.8 leading ... 0.8 lagging

Max. total harmonic distortion

≤ 3 %

Features & Protections

Input-side disconnection device

Yes

Anti-islanding protection

Yes

AC over-current protection

Yes

AC short-circuit protection

Yes

AC over-voltage protection

Yes

DC reverse-polarity protection

Yes

DC surge protection

Type II

AC surge protection

Yes, compatible TYPE II protection class according to EN/IEC 61643-11

Residual current monitoring unit

Yes

Arc fault protection

Yes

Ripple receiver control

Yes

General Data

Operation temperature range

-25 ~ +60 °C (-13 °F ~ 140 °F)

Relative humidity

0 % RH ~ 100% RH

Max. operating altitude

0 - 4,000 m (13,123 ft.) (Derating above 2000 m)

Cooling

Natural Convection

Display

LED indicators; integrated WLAN + FusionSolar APP

Communication

RS485;



WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)



4G / 3G / 2G via Smart Dongle-4G (Optional)

Weight (with mounting plate)

25 kg

Dimensions (W x H x D) (incl. mounting plate)

525 x 470 x 262 mm (20.7 x 18.5 x 10.3 inch)

Degree of protection

IP65

Nighttime Power Consumption

< 5.5 W

Standard Compliance (more available upon request)

Safety

EN/IEC 62109-1, EN/IEC 62109-2

Grid connection standards

G98, G99, EN 50438, EN50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, AS 4777, C10/11, ABNT, UTE



C15-712, RD 1699, RD 661, PO 12.3, TOR D4, IEC61727, IEC62116, DEWA

*1 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter. *2 Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
