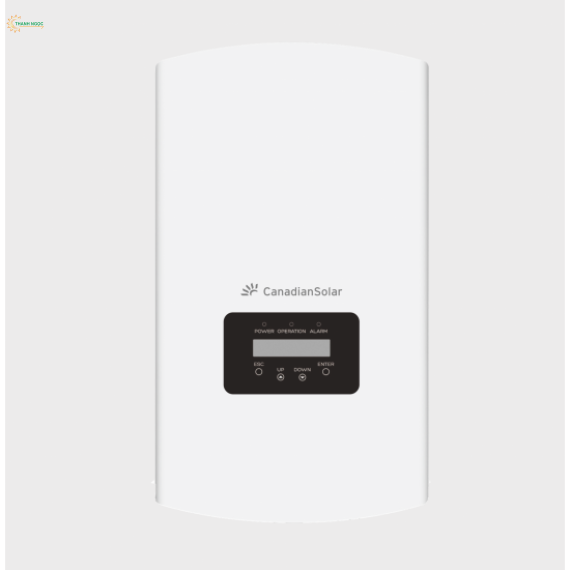

Inverter Canadian 10 Kw 3 Pha Model: CSI 10 K-T400TGL01-E
Máy biến tần 5 kw Model: CSI 10 K-T400TGL01-E
Max. PV power: 15KW
Max. DC input voltage: 1000V
Start-up DC Input Voltage: 180V
Number of MPP Trackers: 2/2
MPPT Voltage Range: 160-850V
SYSTEM/TECHNICAL DATA
MODEL NAME: CSI-10K-T400GL01-E
DC INPUT
Max. DC Power: 15 kW
Max. DC Input Voltage: 1000 V DC
Start-up DC Input Voltage/Power 180 V DC
Number of MPP Trackers: 2/2
MPPT Voltage Range: 160 - 850V DC
Max. Input Current (Imp): 22A/22A
Max. Short Circuit Current (Isc): 34.3A/34.3A
Number of DC Inputs: 2/4
DC Disconnection Type: MC4
AC OUTPUT
Rated AC Output Power: 10 kW
Max. AC Output Power: 11 kW
Rated Output Voltage* 230/400 V AC
Grid Connection Type 3 W / N / PE
Rated Grid Output Current: 14.4 A
Max Output Current: 15.9 A
Rated Output Frequency: 50 Hz
Output Frequency Range*: 45~55 Hz
Power Factor: >0.99 (0.8 leading ... 0.8 lagging)
Current THD: < 1.5 %
DC Injection Current: < 0.5 % of Rated Grid Output Current
SYSTEM
Max. Efficiency: 98.7%
EU Efficiency: 98.1%
Night Consumption: < 1 W
ENVIRONMENT
Protection Degree: IP65
Cooling Forced Ventilation
Operating Temperature Range: -25 ° C to +60 ° C
Storage Temperature Range: -40 ° C to +70 ° C
Operating Humidity: 0 - 100 % Condensing
Operating Altitude: 4000 m
Audible Noise <60 dBA @ 1 m
DISPLAY AND COMMUNICATION
Display: LCD, 2×20 Z
Communication: WIFI/RS485 Optional
MECHANICAL DATA
Dimensions (W / H / D): 563 x 310 x 219 mm
Weight: 18.9kg
Installation Angle 0~15 Degrees from Vertical
DC Inputs: MC4
SAFETY
Safety and EMC Standard IEC62109-1/-2, EN61000-6-1/2/3/4
Grid Standard AS4777-2:2015, IEC61727, IEC62116
