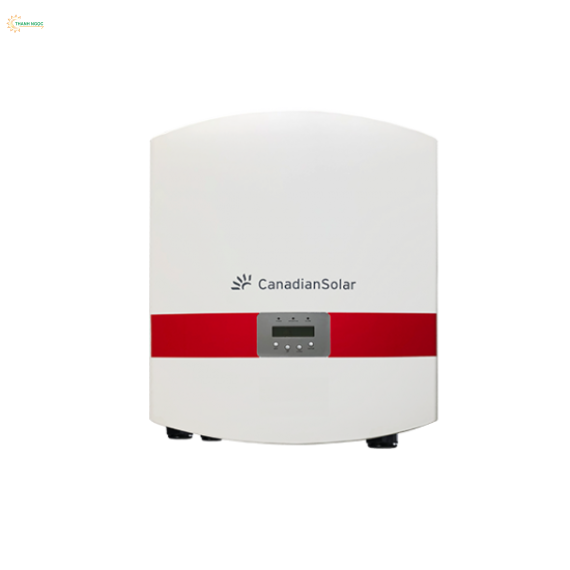

Inverter Canadian 50 Kw 3 Pha Model: CSI 50 KTL-GI
Max. PV Power: 60 kW (16 kW/MPPT)
Max. DC Input Voltage: 1100 VDC
Operating DC Input Voltage Range: 200-1000 VDC
Start-up DC Input Voltage/Power: 200 V
DC INPUT |
|
|
Max. PV Power |
60 kW (16 kW/MPPT) |
|
Max. DC Input Voltage |
1100 VDC |
|
Operating DC Input Voltage Range |
200-1000 VDC |
|
Start-up DC Input Voltage/Power |
200 V |
|
Number of MPP Trackers |
4 |
|
MPPT Full Power Voltage Range |
568-850 VDC |
|
Operating Current (Imp) |
88 A (22 A per MPPT) |
|
Max. Input Current (Isc) |
137.2 A (34.3 A per MPPT) |
|
Number of DC Imputs |
8 (2 per MPPT) |
|
DC Disconnection Type |
Load rated DC switch |
|
AC OUTPUT |
|
|
Rated AC Output Power |
50 kW |
|
Max. AC Output Power |
55 kW |
|
Rated Output Voltage |
480/500 VAC |
|
Output Voltage Range* |
384-576 VAC |
|
|
3 Φ/PE |
|
Nominal AC Output Current @480 Vac |
60.2/57.7 A |
|
Rated Output Frequency |
50/60 Hz |
|
Output Frequency Range* |
47-52/57-62 Hz |
|
Power Factor |
1 default (±0.8 adjustable) |
|
Current THD |
< 3 % |
|
|
|
|
Topology |
|
|
Max. Efficiency |
99% |
|
CEC Efficiency |
|
|
Night Consumption |
< 1 W |
|
SYSTEM/TECHNICAL DATA |
|
|
MODEL NAME |
CSI-50KTL-GI-HFL |
|
ENVIRONMENT |
|
|
Protection Degree |
IP65 |
|
Cooling |
Natural Convection Cooling |
|
Operating Temperature Range |
-25 ° C to +60 ° C |
|
Storage Temperature Range |
-40 ° C to +70 ° C |
|
Operating Humidity |
0 - 100 % |
|
Operating Altitude |
4000 m |
|
|
<30 dBA @ 1 m |
|
DISPLAY AND COMMUNICATION |
|
|
Display |
LCD + LED |
|
Communication |
Standard: RS485 (Modbus) |
|
MECHANICAL DATA |
|
|
Dimensions (W / H / D) |
630 x 700 x 357 mm |
|
Weight |
61 kg |
|
|
90 degrees from horizontal |
|
DC Inputs |
MC4 |
|
SAFETY |
|
|
Safety and EMC Standard |
IEC62109-1/-2 |
|
Grid Standard |
AS4777, NRS097 |
|
Smart-Grid Features |
Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-Watt, Volt-Watt |
